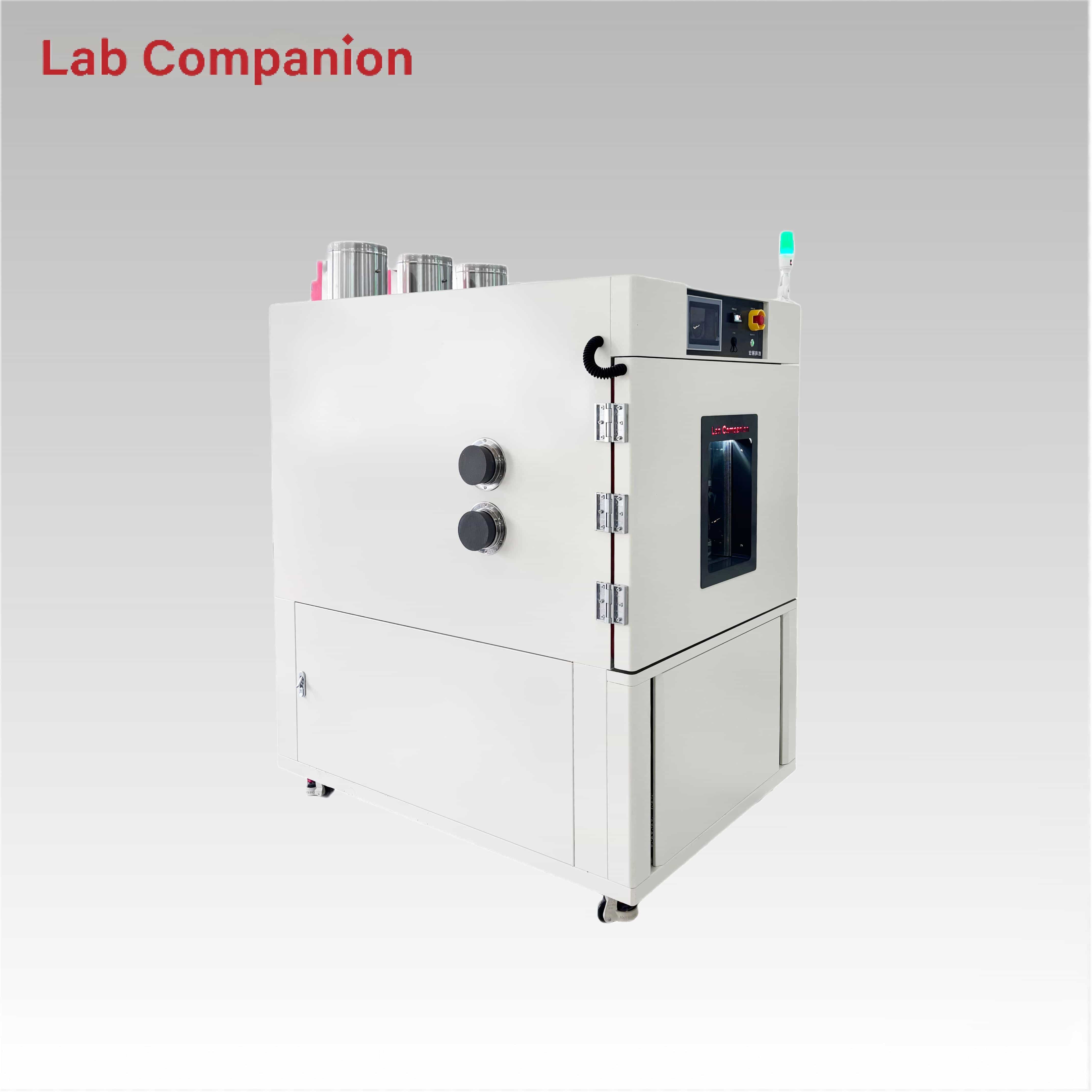

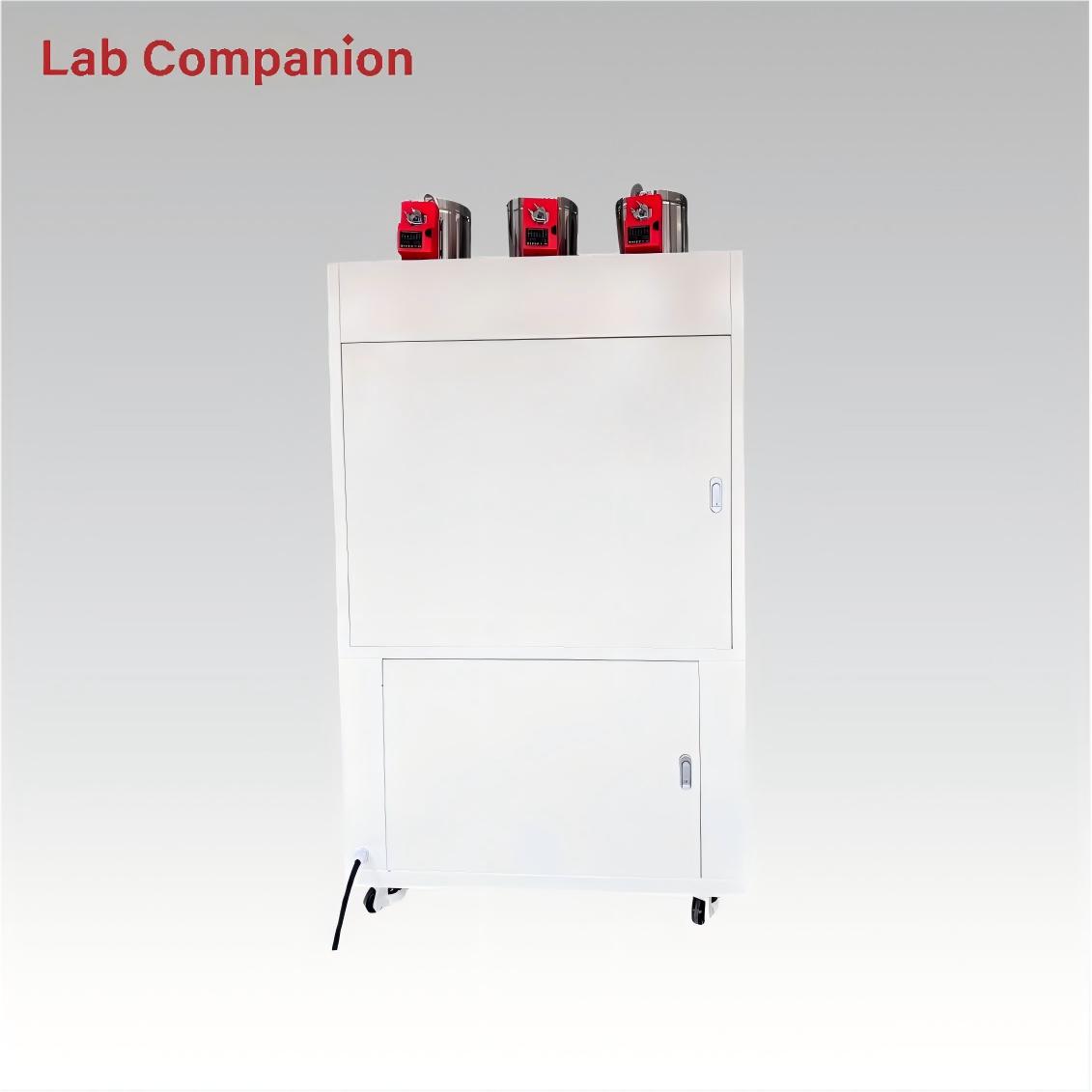

390L Programmable Cycling Chamber for Material Testing

Features of Temperature Cycling Chamber

1. This temperature cycling chamber adopts an advanced and reasonable structure design, with supporting parts and functional components reaching international advanced levels. It meets users’ processing and production requirements, and is easy to operate and maintain with long service life and attractive appearance. A user-friendly interface ensures simple and intuitive operation and monitoring.

2. This chamber applies temperature stress and enables rapid transition between set temperature points (temperature range: -15℃ to +90℃, heating rate: 3℃/min). It consists of refrigeration system, heating system, control system, air circulation system and sensor system.

3. With a wide temperature control range, it provides: rapid high/low temperature change tests, single or repeated cycling tests, as well as independent low-temperature (ultra-low temperature) and high-temperature tests.

4.  The inner chamber is made of SUS304 stainless steel, and the outer chamber uses baked cold-rolled steel plate with anti-rust coating, making the chamber sturdy and durable.

5. The control system is specially designed for temperature cycling tests, featuring strong expandability, simple operation, precise control, high stability and reliability.

Refrigeration System:

The air supply mode inside the test chamber adopts an upper air supply and lower return air cooling system.

Refrigeration System and Compressor: To ensure the test chamber’s cooling rate and minimum temperature requirements, this chamber is equipped with a binary cascade air-cooled refrigeration system driven by Taikang hermetic compressors. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, connected by an evaporative condenser, which also serves as the energy transfer medium. Heat from the working chamber is removed via the two-stage refrigeration system to achieve the target temperature.

The refrigeration system design incorporates energy regulation technology, an effective solution that ensures stable and normal operation of the refrigeration unit. This reduces the operating cost and failure rate of the refrigeration system to an economically optimal level.

(refrigeration room )

High Performance 390L Thermal Cycling Test Chamber with Q8 Controller

390L Universal Cycling Chamber for Reliability Testing

Intelligent Controller Environmental Chamber

150L High Speed Temperature Cycling Test Chamber

It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.

Performance：

High accuracy

Precision control with 18bit A/D convertor

TEMP. : ±0.1% of full scale ±1 digit

HUMI. : ±1.0% of full scale ±1digit

      Optimizing PID group

Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only

      Specialized controller

As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV

     Specialized humidity control

Humidity control algorithm implements a stable control according to the equipment size。

      Heating cooling control

Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
