Avoid Certification Re‑test Risks: Official Compliance Implementation Guide for Lab Companion TS Thermal Shock Test Chambers

1. Industry Compliance Pain Points in Thermal Shock Test Reporting

Automotive electronics and outdoor industrial control products frequently face test report rejection and mandatory re‑testing during AEC‑Q100 qualification and third‑party certification audits. The majority of failures stem from incorrect standard referencing for air‑to‑air thermal shock systems.

The original JEDEC JESD22‑A106B explicitly defines fluid immersion (liquid‑to‑liquid) as the approved test medium. Most global manufacturers adopt air‑cavity thermal shock chambers instead of fluorinated liquid immersion systems. If test reports list only JESD22‑A106B without supplementary specification clarification, auditors will immediately rule a method‑standard mismatch, resulting in full batch invalidation, sample waste, labor loss, and delayed certification timelines.

Traditional air thermal shock equipment presents multiple non‑compliant gaps that trigger audit rejection:

• Transfer time violation: Sample cavity transition exceeds the 20‑second maximum allowed by JESD22‑A106B, with no automated time‑stamped records.

• Incomplete data traceability: No continuous temperature profiling or full cycle data logging for audit verification.

• Poor temperature uniformity: Excessive cavity temperature deviation without valid third‑party thermal calibration documentation.

• Unstandardized reporting: Lack of official report templates leads to inconsistent description and repeated cross‑checking of JEDEC clauses.

As a globally recognized environmental test equipment brand, Lab Companion has conducted in‑depth research across massive JEDEC official specifications and real‑world audit cases. The TS series thermal shock chamber is fully optimized in hardware and firmware to resolve air‑cavity compliance conflicts. It delivers full JESD22‑A106B compliance, complete raw data archiving, standardized report templates, and full calibration documentation, eliminating air‑mode certification rejection and re‑test risks. This guide elaborates on the TS series compliance capabilities, standardized reporting functions, global certification application scenarios, and official documentary support.

2. Core Hardware Compliance Specifications of Lab Companion TS Series

2.1 Qualified Cavity Transition & Precision Temperature Control

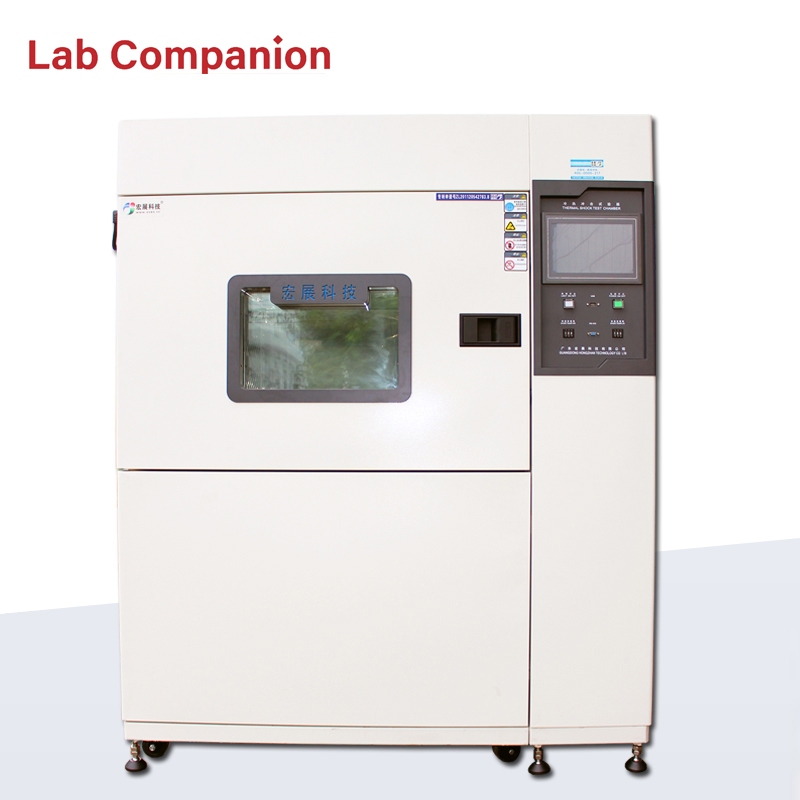

The Lab Companion TS series adopts an independent dual‑cavity thermal storage structure. The high‑temperature cavity preheats from 60℃ to 200℃, while the low‑temperature cavity precools from ‑65℃ to ‑10℃. The effective test temperature range covers ‑55℃ to +150℃, fully matching the standard AEC‑Q100 Condition A requirements for automotive electronics.

Equipped with a high‑speed pneumatic damper switching system, the TS series ensuressample transfer time ≤ 10 seconds, significantly better than the 20‑second upper limit specified in JESD22‑A106B. The cavity temperature deviation is controlled within ±2℃, and sample temperature stabilization recovery time is ≤ 5 minutes, strictly complying with the standard “stable temperature timing” rule. The entire inner chamber and air duct adopt SUS304 stainless steel, ensuring stable thermal field consistency without drift during long‑term alternating high/low temperature cycling.

2.2 Long‑Term Continuous Operation for Zero Data Interruption

The TS series adopts a dual‑stage cascade air‑cooled refrigeration system with imported compressors, maintaining stable refrigeration performance during hundreds of continuous shock cycles. It fully supports high‑frequency, multi‑batch uninterrupted testing for third‑party certification laboratories.

Multi‑level safety interlocks including over‑temperature, high‑pressure, and pneumatic protection prevent unexpected shutdowns and data loss. The industrial touch controller provides stable data storage under complex workshop and laboratory environments, ensuring complete and valid test records without curve interruption or missing logs.

2.3 High‑Precision Data Acquisition Hardware for Audit‑Ready Evidence

Built‑in independent timing and acquisition modules automatically record every cavity transfer duration, real‑time cavity temperature, and sample dwell time. The chamber supports multi‑channel external thermocouples to collect actual product body temperature data — a critical advantage over ordinary chambers that only record cavity temperature. Real product temperature variation data can be exported directly as audit attachments to enhance report credibility.

Dual export methods (local USB & PC wired transmission) generate files fully compatible with mainstream third‑party certification systems, enabling direct report submission without secondary formatting.

3. Standardized Air‑Mode Compliance Solution via Lab Companion Firmware & Software

3.1 Eliminate Standard Reference Errors at the Source

Based on massive JEDEC specification verification, Lab Companion preloads official composite standard annotation templates in the system. The program default description strictly follows international audit conventions:

Test method: JESD22A104F.01, test conditions referenced to JESD22A106B.01

This pre‑set wording completely avoids the common audit rejection caused by single JESD22‑A106B marking for air‑mode testing.

Official JEDEC clause interpretation documents are delivered with each unit, clearly distinguishing the application boundaries between liquid‑immersion and air‑cavity thermal shock modes, providing authoritative basis for laboratory SOP formulation and report compilation. Standard Condition A parameter sets are preloaded for one‑click recall, eliminating manual entry errors.

3.2 Full Raw Data Archiving for Complete Audit Traceability

The TS series automatically generates comprehensive audit evidence for every test batch:

• Transfer time statistics: Automatic logging of each cycle transition duration to prove compliance with the <20s rule.

• Continuous temperature profiling: Complete curves covering low‑temperature stabilization, rapid transfer, and high‑temperature dwell for intuitive auditor verification.

• Automatic cycle summary: Total cycles, high/low temperature dwell duration, and system runtime are statistically calculated without manual intervention, avoiding human errors.

3.3 Pre‑Calibrated Automotive Grade Test Programs for Unified Standards

Factory‑preloaded automotive industry standard programs fully comply with mainstream component validation norms: Condition A mode, 10‑minute high/low temperature dwell, and 300 standard cycles. Mass production and R&D teams can adopt unified test procedures, ensuring horizontal data consistency across batches and improving factory quality system audit pass rates.

4. Global Application Scenarios & Certification Implementation

4.1 Third‑Party Certification Laboratories

Independent testing laboratories face high daily testing volumes and strict audit consistency requirements. Lab Companion TS chambers support uninterrupted multi‑batch testing with fully auto‑generated audit data. Stable ≤10s transfer performance eliminates manual monitoring workload. Delivered third‑party thermal uniformity and transfer time calibration reports can be submitted directly with test results, greatly reducing supplementary audits and re‑test rates and improving overall project delivery efficiency.

4.2 Automotive Electronics R&D & Mass Production Certification

For automotive control units, power devices, and PCB manufacturers, the TS series serves dual purposes: R&D failure analysis and mass shipment certification. Complete temperature variation curves help reproduce delamination, pad peeling, and thermal stress failures for product optimization. For formal certification, preloaded standard programs and one‑click data export streamline qualification report generation.

Global Lab Companion technical support ensures fast calibration, program optimization, and troubleshooting, preventing certification delays caused by equipment or data non‑conformity. Partner factories using TS chambers have achieved dramatic reductions in annual re‑test batches, saving substantial sample and labor costs.

5. Official Compliance Documentation & Global Technical Services

5.1 Full Set of Factory Compliance Certification Documents

Each Lab Companion TS chamber is delivered with three core official document packages for global audit and factory inspection:

• 9‑point cavity temperature uniformity test report

• Third‑party verified transfer time calibration report (certifying ≤10s stable transition)

• Standardized air thermal shock test report template

All documents are archivable and auditable for global certification and quality system review.

5.2 Professional JEDEC Specification & Reporting Guidance

Backed by Lab Companion’s long‑term accumulation of global JEDEC standards and audit cases, our technical team provides professional guidance on standard interpretation, air/liquid mode distinction, compliant report wording, and attachment submission. Clients can obtain authoritative clause support efficiently without massive manual standard lookup. Global after‑sales support ensures rapid response for calibration and data system maintenance to keep certification progress uninterrupted.

5.3 Batch Program Synchronization for Multi‑Chamber Standard Unification

For laboratories with multiple units, Lab Companion engineers provide unified program deployment and parameter synchronization. All chambers maintain identical test logic, temperature parameters, and data recording rules, ensuring consistent report standards across the entire facility and eliminating auditor doubts caused by equipment discrepancy.

6. Conclusion

Air‑mode thermal shock standard mismatch and re‑test failure are longstanding industry challenges in automotive and industrial electronic qualification. Conventional chambers only deliver basic temperature cycling without standardized JEDEC compliance logic and complete audit data.

Based on massive JEDEC specification research and global certification experience, the Lab Companion TS series provides a fully compliant air‑cavity thermal shock solution. Hardware performance fully meets JESD22‑A106B mandatory indicators with ≤10s ultra‑fast transfer and high‑precision stable thermal fields. The system integrates standardized composite standard labeling, full‑process automatic data logging, and complete third‑party calibration documentation. With professional global compliance guidance and unified program deployment services, Lab Companion fundamentally resolves air thermal shock certification rejection and re‑test risks.

For third‑party testing laboratories and automotive component manufacturers, the Lab Companion TS thermal shock chamber ensures test authenticity, procedural compliance, and report validity. It effectively reduces re‑test losses, shortens certification cycles, and accelerates global product approval and market launch, serving as the professional standardized solution for automotive‑grade thermal shock qualification testing.
