Lab Companion: Optical Component Reliability Test Solution – GR-468-CORE Standard Compliance & Equipment Configuration
Aug 28, 2026
1. Necessity of Reliability Testing for Optical Communication Components
1.1 Harsh Operating Conditions Mandate Strict Reliability Verification
Optical communication components are often misunderstood to operate only in temperature-controlled and clean indoor server rooms. In fact, they serve far more demanding deployment scenarios. Optical modules are widely installed in outdoor cabinets, communication base stations, and metropolitan network access nodes, in addition to indoor switches and OLT devices.
Outdoor cabinets can exceed +65°C under direct sunlight in summer and drop below -40°C in cold northern winters. Even indoor facilities experience frequent local temperature fluctuations due to high device density and concentrated power consumption.
Optical components are high-precision optoelectronic integrated systems consisting of laser diodes (LD), photodetectors (PD), transimpedance amplifiers, driver ICs, optical lenses, and fiber coupling structures. Laser chips are extremely temperature-sensitive; temperature variations directly cause shifts in optical power, wavelength, and threshold current. Long-term thermal cycling leads to laser performance degradation, fiber coupling misalignment, and packaging aging, ultimately resulting in reduced optical power, increased bit error rate, and even complete communication link failure.
Optical networks require ultra-high operational stability and continuity. Failure of a single optical module may paralyze entire service links. For this reason, global telecom operators and equipment manufacturers enforce strict failure rate thresholds. Full reliability validation is mandatory before mass production and market release.
1.2 GR-468-CORE: Global Industry Entry Benchmark
Published by Telcordia (formerly Bellcore), GR-468-CORE is the universal global reliability standard for optoelectronic devices. It defines a complete set of qualification test items for commercialization, including temperature cycling, thermal shock, high/low temperature storage, temperature-humidity bias testing, mechanical vibration, and ESD testing, covering full-scenario reliability verification for optical components.
Originating from North American telecom procurement specifications, GR-468-CORE has become a worldwide recognized entry requirement. Global optical module suppliers must provide GR-468-CORE-compliant test reports to qualify for operator and manufacturer supply chains. The accuracy, stability, and standard compliance of test equipment directly determine product certification eligibility and market accessibility.
2. Core Environmental Test Items Defined by GR-468-CORE
2.1 Temperature Cycling Test
As a core GR-468-CORE validation item, temperature cycling evaluates the structural durability of component packaging under repeated thermal fluctuations. Standard mainstream test ranges include -40°C to +70°C and -40°C to +85°C, with optional 100-cycle or 500-cycle testing. Strict requirements are specified for temperature ramp rates and dwell durations.
Typical failure modes include thermal stress-induced laser-package deformation, fiber coupling offset, solder fatigue, degraded packaging airtightness, and structural cracks at fiber-package joints. Optical power, wavelength, and threshold current are monitored after each cycle to ensure performance remains within specification limits.
2.2 Thermal Shock Test
Thermal shock testing verifies packaging resistance against extreme and rapid temperature transitions. The standard test condition adopts a wide temperature range of -40°C to +85°C with ultra-fast temperature switching and 100–500 test cycles.
Compared with temperature cycling, thermal shock generates far steeper temperature gradients, inducing instantaneous uneven thermal stress on laser chips, lenses, packages, and fiber coupling structures. This easily causes micron-level coupling deviation, solder joint cracking, and packaging delamination. Given the ultra-precise coupling tolerance of optical components, minor offset leads to significant optical power loss, making thermal shock a critical screening test for latent defects.
2.3 High & Low Temperature Storage Test
High-temperature storage testing places components under long-term static high-temperature environments (+85°C / +100°C, unbiased) for hundreds of hours to verify the thermal stability of packaging materials, solder structures, and optical assemblies, and to screen high-temperature aging degradation risks.
Low-temperature storage testing conducts long-term static incubation at -40°C to validate structural stability and performance consistency under prolonged extreme cold conditions.
Primary failure modes include material aging and embrittlement, solder performance degradation, sealant failure, and fiber stress relaxation. Periodic parameter sampling throughout the test enables accurate prediction of long-term performance drift trends.
2.4 Temperature-Humidity Bias (THB) Test
The THB test adopts the standard condition of +85°C / 85% RH, with optional electrical bias operation over extended durations. It evaluates the resistance of optical components to corrosion and electrochemical migration under high-temperature and high-humidity environments.
Precision internal structures such as gold wire bonds, pads, and leads are prone to oxidation and electrochemical migration under humid and hot conditions, resulting in weakened bonding strength, increased leakage current, and degraded optoelectronic performance. As a long-duration test item, THB imposes high demands on equipment’s long-term operational stability and precise humidity & temperature control consistency.
3. Typical Failure Modes & Key Test Focuses
3.1 Optical Coupling Offset Failure
The laser-fiber coupling structure is the most precise part of optical components with micron-level alignment tolerance. Thermal expansion and contraction of packages, bases, and lenses under temperature fluctuations cause coupling offset, directly reducing optical power and transmission efficiency. Temperature cycling and thermal shock tests are the primary methods to screen such failures. Post-test optical power drift and performance recovery are core qualification criteria.
3.2 Solder & Bonding Structure Degradation
Long-term alternating thermal stress leads to fatigue cracks, interface peeling, and reduced bonding strength in laser chip eutectic solder, substrate-package solder joints, and gold wire bonds. High-temperature storage and temperature cycling tests effectively simulate long-term operational stress, verifying the long-term reliability of welding and bonding structures and eliminating batch failure risks.
3.3 Packaging Airtightness & Interface Aging Failure
Hermetic packaging is essential to protect internal laser chips and optical lenses from moisture and contamination invasion. Temperature cycling and thermal shock may generate microcracks on sealing interfaces and reduce airtightness, while humid conditions accelerate moisture penetration and packaging aging. Strict airtightness inspection and visual examination before and after testing are required to ensure packaging integrity.
4. Lab Companion Equipment Full Compliance with GR-468-CORE
Lab Companion is an international brand specializing in environmental reliability test equipment with 21 years of R&D and manufacturing experience. Holding Madrid International Trademark and EU Trademark certifications, all equipment adopts self-developed intelligent control and optimized airflow circulation technology, fully meeting all GR-468-CORE environmental test requirements for optical component R&D verification and mass production screening.
4.1 TC Series Rapid Temperature Change Chamber (for Temperature Cycling)
The TC Series covers a wide temperature range of -70°C to +150°C with linear temperature change rates adjustable from 5°C/min to 25°C/min, fully complying with GR-468-CORE requirements for temperature range, ramp speed, and dwell time. For the standard -40°C to +85°C test condition, the equipment reserves sufficient temperature margins to ensure stable low-load operation, high control accuracy, and excellent test repeatability.
Equipped with linear temperature variation control, the TC Series guarantees consistent thermal stress in each cycle, delivering traceable and standard-aligned test data. Multiple chamber sizes (bench-top and vertical) are available to accommodate small-batch R&D verification and large-scale mass testing. The compact size of optical components enables high loading capacity and optimal equipment utilization.
4.2 TS Series Thermal Shock Chamber (for Temperature Shock Testing)
The TS Series thermal shock chamber features a -70°C to +150°C temperature range and ultra-fast temperature switching within 10 seconds, exceeding GR-468-CORE standards. It generates effective transient thermal gradients to fully expose latent stress concentration risks in packaging, accurately verifying the shock resistance of coupling structures, sealing interfaces, and solder joints.
Dual structural designs (single-chamber / dual-chamber) are optional: single-chamber models support high-efficiency shock testing for miniature optical components, while dual-chamber models adapt to large-scale optical modules and array devices, covering all types of optical communication product testing scenarios.

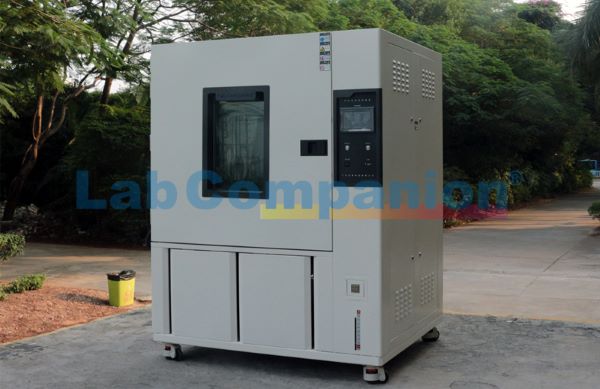

4.3 Constant Temperature & Humidity Chamber (for High/Low Temp Storage & THB Testing)
Lab Companion constant temperature & humidity chambers reach up to +150°C with a humidity control range of 20%RH–98%RH, fully covering all GR-468-CORE high/low temperature storage and THB test conditions. Powered by self-developed Q8 intelligent control system and optimized airflow circulation design, the equipment maintains stable temperature and humidity output during hundreds of hours of continuous operation without drift, perfectly adapting to long-term aging test requirements.
Large-capacity chambers support simultaneous multi-batch component testing to improve mass production efficiency. High-precision data acquisition systems ensure complete and valid long-term test data recording.
5. Key Control Points for Reliability Test Implementation
5.1 Synchronization of Thermal Curves & Optical Performance Data
Accurate correlation between environmental conditions and component performance is critical for optical reliability testing. Lab Companion TC and TS chambers are equipped with high-precision real-time data logging systems to record full temperature-time curves and operating status with exportable, traceable data. The equipment seamlessly connects with customer optical test systems to synchronize optical power, wavelength, and bit error rate data with thermal cycling profiles, enabling precise root cause analysis of performance drift and supporting product optimization.
5.2 Standardized Sample Loading & Airflow Optimization
Given the small size and large testing quantity of optical components, uniform sample placement is essential for test consistency. Samples shall be evenly arranged with reserved gaps for smooth airflow to avoid local temperature deviation. For biased electrical testing, standardized wiring is required to prevent airflow blockage. Lab Companion provides customized sample racks and professional loading guidance based on customer sample dimensions and batch sizes, balancing loading density and test accuracy to ensure consistent mass test results.
5.3 Long-Term Operational Stability & Global Technical Support
GR-468-CORE THB and temperature storage tests require hundreds to thousands of hours of continuous operation, making long-term equipment stability decisive for test success. Lab Companion equipment adopts industrial-grade core components and multi-protection mechanisms (over-temperature, over-current, fault alarm) to support uninterrupted long-duration operation, eliminating test failure caused by equipment downtime.
For global customers, Lab Companion provides full-process online technical support, including remote equipment commissioning, operational guidance, regular online inspection, fault diagnosis, and professional training. Efficient and standardized remote service ensures stable and continuous testing progress for overseas projects without local on-site service.
6. Conclusion
GR-468-CORE is an essential technical threshold for optical component global market access. Thermal cycling, thermal shock, high/low temperature storage, and THB testing raise strict requirements for equipment temperature range, ramp rate, switching speed, control precision, and long-term stability.
Lab Companion TC rapid temperature change chambers, TS thermal shock chambers, and constant temperature & humidity chambers fully comply with GR-468-CORE standard specifications. With ultra-wide temperature range, fast thermal response, high-precision environmental control, and outstanding long-term stability, the equipment perfectly fits the full-cycle demands of optical component R&D iteration, quality verification, and mass production screening.
Providing professional equipment selection, customized test solutions, remote commissioning, technical training, and after-sales support for global clients, Lab Companion helps optical enterprises efficiently pass international standard certification and enhance global market competitiveness.
