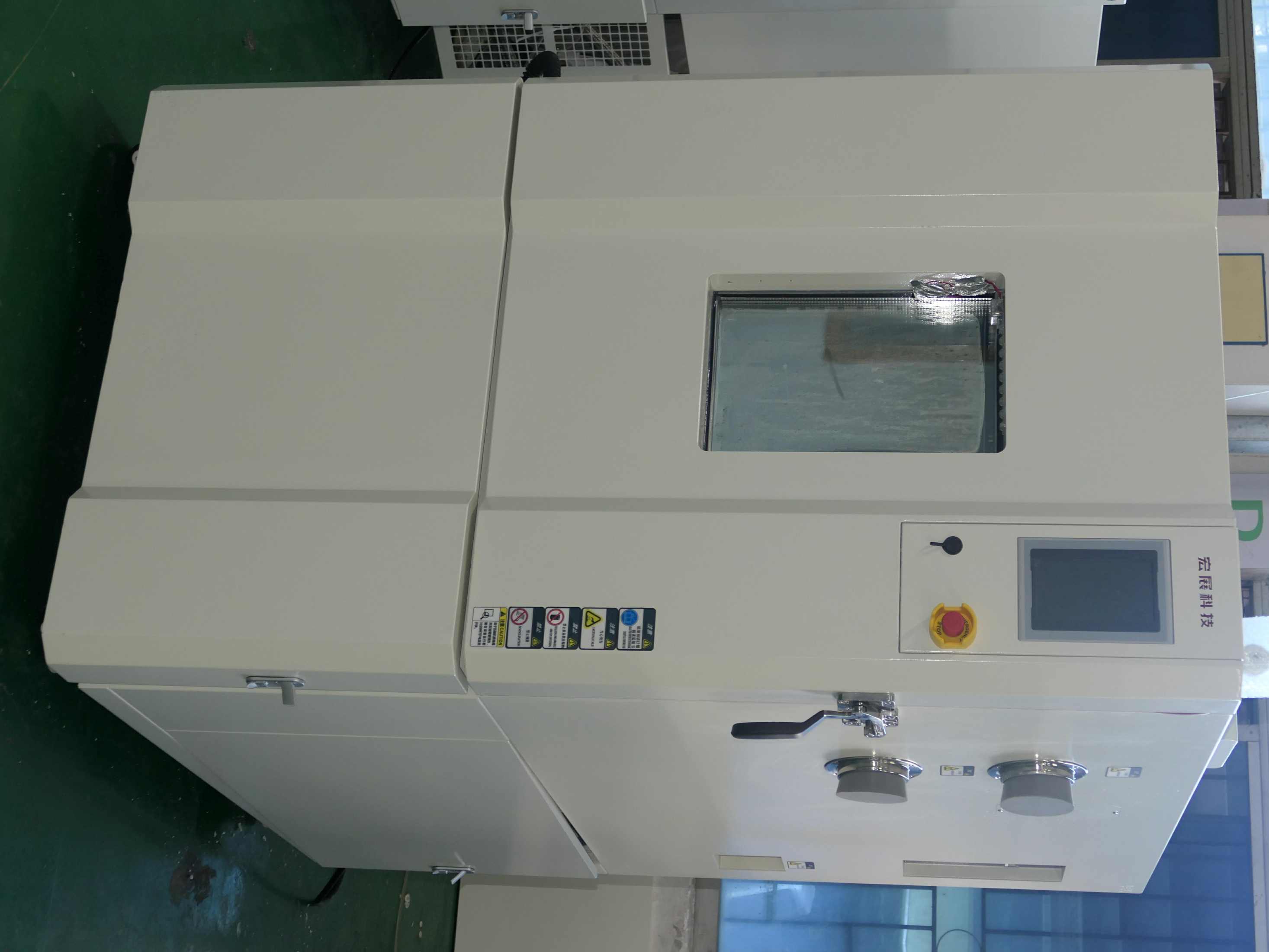

High and low temperature test chamber may encounter a variety of problems in the process of use, the following is a summary of potential faults and their causes from different perspectives:
1. Core system failure
Temperature out of control
Reason: PID control parameters are out of balance, ambient temperature exceeds the design range of the equipment, multi-zone temperature interference.
Case: In a special environment workshop, the external high temperature causes the refrigeration system to overload, resulting in temperature drift.
Humidity is abnormal
Reason: poor water quality of humidification leads to scaling and nozzle blockage, failure of ultrasonic humidifier piezoelectric sheet, and incomplete regeneration of dehumidification desiccant.
Special phenomenon: reverse condensation occurs during high humidity test, resulting in the actual humidity in the box being lower than the set value.
2. Mechanical and structural problems
Air flow is disorganized
Performance: There is a temperature gradient of more than 3℃ in the sample area.
Root cause: the customized sample rack changed the original design air duct and the accumulation of dirt on the centrifugal fan blade led to the destruction of dynamic balance.
sealing failure
New failure: the magnetic force of electromagnetic sealing door decreases at low temperature, and the silicone sealing strip becomes brittle and cracks after-70℃.
3. Electrical and control system
Intelligent control failure
Software level: After firmware upgrade, the temperature dead zone setting error occurs and the historical data overflow causes the program to crash.
Hardware level: SSR solid state relay breakdown causes continuous heating and bus communication is subjected to inverter electromagnetic interference.
Security protection vulnerabilities
Hidden dangers: the synchronous failure of the triple temperature protection relay and the false alarm caused by the expiration of the refrigerant detector calibration.
4. Challenges of special working conditions
Specific temperature shock
Problem: -40℃ to +150℃ rapid conversion of the evaporator weld stress cracking, thermal expansion coefficient difference resulting in the failure of the observation window seal.
Long-term operation attenuation
Performance degradation: after 2000 hours of continuous operation, the compressor valve plate wear leads to a decrease of 15% in refrigeration capacity and drift of ceramic heating tube resistance value.
5. Environmental and maintenance impact
Infrastructure adaptation
Case: The power oscillation of PTC heater caused by the fluctuation of power supply voltage and the water hammer effect of cooling water system damaged the plate heat exchanger.
Preventive maintenance blind spots
Lesson: Ignoring the positive pressure of the box leads to water entering the bearing chamber and biofilm growth and blockage in the condensate discharge pipe.
6. Pain points of emerging technologies
New refrigerant application
Challenges: system oil compatibility problems after R448A replaces R404A, and high pressure sealing problems of subcritical CO₂ refrigeration systems.
IoT integration risks
Fault: The remote control protocol is maliciously attacked, resulting in program tampering and cloud storage failure, resulting in the loss of test evidence chain.
Strategy recommendations
Intelligent diagnosis: configure vibration analyzer to predict the failure of compressor bearing, and use infrared thermal imager to scan the electrical connection points regularly.
Reliability design: key components such as evaporator are made of SUS316L stainless steel to improve corrosion resistance, and redundant temperature control modules are added to the control system.
Maintenance innovation: implement a dynamic maintenance plan based on operating hours, and establish an annual refrigerant purity testing system。
The solutions to these problems need to be analyzed in combination with the specific model of the equipment, the use environment and the maintenance history. It is recommended to establish a collaborative maintenance mechanism including the OEM of the equipment, third-party testing institutions and user technical teams. For key test items, it is recommended to configure a dual-machine hot standby system to ensure the continuity of testing.
1. Communicate with manufacturers directly to customize requirements
operating steps ：
Requirement submission: clear the test object (such as headlights, batteries, sensors, etc.), test scenario (such as simulated extreme cold wading, high temperature and high pressure spraying) and industry specifications (such as automobile, military, electronics);
Technology docking: provide product parameters (size, weight), environmental conditions (temperature range, impact frequency) and special requirements (such as salt spray superposition test, dynamic Angle adjustment);
Confirmation of the scheme: Based on general standards such as GB, IEC and GJB, and industry specifications such as VW 80101 and ISO 16750, the manufacturer designs customized test procedures and equipment configuration schemes.
2. Adapt to the existing standard framework
Manufacturers can expand or adjust based on the following criteria:
national standards ：
GB/T 28046.4-2011: For the climate load test of automotive electrical equipment, the core parameters such as temperature, time and circulation times of ice water impact are defined;
GB/T 2423.1: Environmental test specification for general electrical and electronic products, supporting the design of calibration and verification process.
codes of practice ：
VW 80101-2005: Volkswagen Electric Components Test Standard, applicable to the refinement of parameters such as spray pressure and water temperature accuracy;
GMW3172: General Motors global engineering standard, supporting multi-environment composite testing (such as ice water impact + salt spray corrosion);
ISO 16750-4:2006: International common vehicle electrical equipment test framework, compatible with customized cycles (e.g. 100 standard or 200 enhanced).
Third, optimize standards by using manufacturers' technical resources
Flexible parameter adjustment:
Temperature range: standard high temperature range 65~160℃, can be extended to-70℃ to +150℃;
Water splashing system: support flow (3~4L/3S or 80L/min), distance (325±25mm adjustable), nozzle type (gap/matrix) and other customization;
Intelligent control: the PLC system can customize the temperature switching rate (such as 20 seconds to complete the conversion from extreme cold to high temperature), data acquisition frequency and report format.
Function module superposition:
Compatible with multiple test requirements such as waterproof (IPX5-6) and dustproof (IP5X-6X);
Support dynamic Angle spraying (15 ~75 adjustable), salt spray composite test and other complex scene simulation.
4. Ensure compliance through certification and verification
Equipment calibration: the manufacturer provides half-year temperature sensor calibration service, the error is controlled within ±2℃;
Third-party verification: it is recommended to certify the temperature change rate, uniformity and other indicators of customized equipment through quality inspection institutions (such as China Electric Power Research Institute, FAW test site);
Data traceability: The test chamber supports USB export of test logs, which is convenient for quality traceability and standard iteration.
5. Service support and case reference
Technical team: Guangdong Hongzhan cooperates with universities and research institutes to provide whole-process support from demand analysis to standard implementation;
Case library invocation: You can refer to the car company case (such as 800V battery pack IPX9K test, intelligent lamp cold and hot cycle verification) to optimize and customize the standard;
After-sales guarantee: customized equipment enjoys 1 year warranty and 48 hours door-to-door maintenance to ensure the stability of standard implementation.
The Guangdong Hongzhan Dust Test Chamber is primarily used to simulate natural sand and dust environments, testing the dust resistance of various products. In industries such as electronics, automotive, and aerospace, products may face challenges from sand and dust. If a product's dust resistance is inadequate, sand and dust particles can penetrate the equipment, leading to malfunctions, performance degradation, or even damage. Therefore, accurately assessing a product's dust resistance is crucial, and the Guangdong Hongzhan Dust Test Chamber provides a reliable testing platform for companies.
(1) Box structure: combination of robust and durable and sealing
The test chamber is constructed from high-quality stainless steel, which not only provides excellent corrosion resistance and protection against sand and dust erosion but also ensures good sealing to prevent sand and dust leakage, maintaining the stability of the testing environment. The interior is meticulously divided into functional areas such as the sample testing zone, sand and dust circulation duct, heating system, and control system, facilitating both operation and maintenance.
(2) Dust generation system: accurate simulation of dust environment
This is one of the core components of the test chamber. It consists of a sand and dust storage unit, a sand and dust conveying unit, and a sand and dust dispersion unit. The storage unit can hold sand and dust of various sizes and compositions as required by the test. The conveying unit delivers the sand and dust into the test chamber using either a screw conveyor or an air conveying method. The dispersion unit ensures that the conveyed sand and dust is evenly distributed in the air, creating a stable and suitable sand and dust environment for testing, ensuring that each sample is thoroughly tested under uniform conditions.
(3) Air circulation system: create stable dust airflow
The air circulation system consists of a fan, ducts, and an air filter. The fan provides the necessary power to ensure the air circulates within the test chamber. The ducts guide the airflow effectively, ensuring that the air passes through the sand and dust generation system and the sample testing area, allowing the sand and dust to fully contact the samples. The air filter effectively removes sand and dust particles from the circulating air, protecting the fan and other equipment from damage and extending their lifespan.
(4) Control system: intelligent and accurate operation core
The control system employs an advanced programmable logic controller (PLC) and a touch screen interface. Operators can easily set and monitor test parameters, such as temperature, humidity, dust concentration, and wind speed, via the touch screen. It also features automatic adjustment capabilities, allowing it to continuously monitor and precisely adjust the various parameters inside the test chamber according to preset values, ensuring that the testing environment always meets the required standards. Additionally, the control system includes fault alarm and protection functions, which can promptly issue warning signals and take protective measures in case of any abnormal conditions, ensuring the safety of both equipment and personnel.
(5) Complete workflow: efficient and rigorous testing process
During the preparation phase, operators select appropriate sand and dust particles based on the test requirements and place them in the storage device. They then clean and inspect the test chamber and properly position the samples within the testing area. Once the test chamber is activated, the sand and dust generation system begins to operate, conveying and dispersing the sand and dust into the air. The air circulation system ensures a stable flow of sand and dust air. The control system continuously monitors and adjusts various parameters to maintain a stable test environment. During the sample testing phase, the test chamber operates according to the set schedule
When the Guangdong Hongzhan ice water impact test chamber is used in summer, the following matters should be paid special attention to to ensure the stable operation of the equipment and the accuracy of the test results:
1. Environment and heat dissipation management
Enhance ventilation and heat dissipation High temperature in summer is easy to lead to the decrease of equipment heat dissipation efficiency. Ensure that at least 10cm space is reserved around the equipment to promote air circulation. If the equipment adopts air cooling system, the condenser surface dust should be cleaned regularly to prevent poor heat dissipation and overheating of the compressor.Control the environmental temperature and humidity. Avoid placing the equipment in the direct sunlight area. It is recommended that the laboratory temperature be kept at 25±5℃ and the humidity be lower than 85%. High temperature and high humidity environment may accelerate the accumulation of frost or condensation water on the equipment, so it is necessary to increase the dehumidification measures.
2. Refrigeration system maintenance
Water quality and tank management Bacteria are easy to breed in summer, so use deionized water or pure water to avoid hard water scaling and blocking pipes. It is recommended to change the tank water every 3 days, and empty and clean the tank before long-term disuse.Refrigeration efficiency monitoring High temperature environment may lead to overload operation of the refrigeration system. The compressor oil condition should be checked regularly to ensure sufficient refrigerant. If the water temperature exceeds the set value (such as 0~4℃), the machine should be stopped immediately for troubleshooting.
3. Frosting and defrosting treatment
Prevent frost aggravation When the humidity is high in summer, the frost rate inside the equipment may accelerate. It is recommended to perform a manual defrosting process after 10 cycles: set the temperature to 30℃ and keep it for 30 minutes, and then drain water to clean the ice crystals on the evaporator surface.
Optimize the test interval to avoid continuous long-term low temperature testing. It is recommended to reserve 15 minutes of buffer time between high temperature (e.g., 160℃) and ice water shock cycle to reduce the impact of thermal stress on the equipment.
4. Adjustment of operation specifications
Parameter setting optimization According to the characteristics of the summer environment, the normal temperature recovery stage time can be shortened appropriately (the reference standard is to complete the temperature switch within 20 seconds), but it must ensure that it meets the requirements of GB/T 2423.1 or ISO16750-4 standards.Safety protection should be strengthened. Anti-freezing gloves and goggles should be worn during operation to avoid the adhesion of hands and low-temperature parts caused by sweating. Before opening the door after high temperature test, the temperature inside the box should be confirmed to be below 50℃ to prevent scalding from hot steam.
5. Emergency and long-term shutdown preparation
Fault response If the equipment has E01 (temperature out of tolerance) or E02 (water level abnormal) alarm, you should immediately cut off the power supply and contact the technical support of the manufacturer. Do not disassemble the refrigeration pipeline by yourself.Long-term protection When not used for more than 7 days, the water tank should be emptied, power should be cut off and dust cover should be covered. At the same time, power should be on for 1 hour every half a month to keep the circuit board dry.
Through the above measures, the impact of high temperature and humidity environment in summer on the ice water shock test chamber can be effectively reduced to ensure the reliability of test data and the service life of the equipment. The specific operation details should be adjusted according to the equipment manual and actual working conditions.
The high and low-temperature impact test chamber is designed for reliability testing of industrial products under both high and low temperatures. It is used to evaluate the performance of components and materials in industries such as electronics, automotive, aerospace, shipbuilding, and weaponry, as well as in higher education and research institutions, under alternating cycles of high and low temperatures. The main features include:
Excellent Conductivity: The alloy cable, made by adding rare earth elements and copper, iron, silicon, and other elements from China, undergoes special processing to achieve a conductivity 62% higher than that of copper. After this process, the cross-sectional area of the alloy conductor is increased by 1.28 to 1.5 times, making the cable's current-carrying capacity and voltage drop comparable to those of copper cables, effectively replacing copper with new alloy materials.
Superior Mechanical Properties: Compared to copper cables, the rebound performance of the high and low-temperature impact test chamber is 40% lower, and its flexibility is 25% higher. It also has excellent bending properties, allowing for a much smaller installation radius compared to copper cables, making it easier to install and connect terminals. The special formulation and heat treatment process significantly reduce the creep of the conductor under heat and pressure, ensuring that the electrical connections of the alloy cable are as stable as those of copper cables.
Reliable Safety Performance: The high and low-temperature impact test chamber has been rigorously certified by UL in the United States and has been in use for 40 years in countries like the United States, Canada, and Mexico without any issues. Based on advanced American technology, the test chamber has been tested and inspected by multiple domestic institutions, ensuring its reliable safety.
Economic Performance Savings: When achieving the same electrical performance, the direct procurement cost of high and low-temperature impact test chambers is 20% to 30% lower than that of copper cables. Since alloy cables are only half the weight of copper cables and have excellent mechanical properties, using alloy cables can reduce transportation and installation costs by more than 20% in general buildings and over 40% in large-span buildings. Using high and low-temperature impact test chambers will have an immeasurable impact on building a resource-efficient society.
Excellent Anti-corrosion Performance: When exposed to air at high temperatures, alloy cables immediately form a dense oxide layer that is highly resistant to various forms of corrosion, making them suitable for harsh environments. Additionally, the optimized internal structure of the alloy conductor and the use of silane cross-linked polyethylene insulation material extend the service life of alloy cables by more than 10 years compared to copper cables.
The walk-in constant temperature laboratory is a crucial facility in modern scientific research and industrial experimentation. Its core principle involves maintaining a stable and reproducible experimental environment by precisely controlling temperature and environmental conditions. These laboratories typically use efficient cooling and heating systems, along with advanced temperature sensors and automatic control systems, to ensure precise temperature regulation.
In the walk-in constant temperature laboratory, temperature changes are strictly controlled within a set range. For instance, the typical operating range is from-20℃ to +60℃, which provides excellent conditions for studying the physical and chemical properties of materials. Conducting experiments in such an environment allows researchers to avoid external temperature fluctuations, ensuring more reliable and comparable results. Additionally, the walk-in design offers experimenters greater flexibility, making it easier to test large quantities or complex equipment.
In addition to temperature control, constant temperature laboratories can also regulate humidity, airflow, and other environmental factors to meet the needs of various experiments. For instance, in biological experiments, controlling humidity is equally important, as both excessively high and low humidity levels can affect biological samples. Therefore, these laboratories are typically equipped with humidity monitoring and control systems, using humidifiers or dehumidifiers to precisely manage the indoor air humidity, ensuring the reliability and consistency of experimental conditions.
Furthermore, the structural design of the walk-in constant temperature laboratory takes into account both safety and ergonomics. The equipment is meticulously arranged to allow laboratory personnel to move freely within the space, facilitating smooth experimental operations. In more advanced designs, airtight doors and isolation walls are also incorporated to ensure the independence of the experimental environment, minimizing external influences.
In summary, a walk-in constant temperature laboratory is not just a physical space; it serves as a bridge for scientific exploration. It aids researchers in investigating the performance and reaction mechanisms of materials under various complex environmental conditions, thereby driving the continuous advancement of science and technology. Whether in the development of new materials, drug testing, or climate change research, the constant temperature laboratory plays a crucial role, becoming a sacred experimental haven in the hearts of researchers.
When operating a constant temperature and humidity test chamber, it is important to be aware of potential issues during the process and ensure proper operation. Improper handling can easily lead to equipment malfunctions. However, over time, some faults will inevitably occur. In this article, we will discuss several common faults and their solutions.
Fault: If the temperature does not reach the set value during high-temperature testing, the first step is to check the electrical system and troubleshoot each component. If the temperature in the constant temperature and humidity test chamber rises too slowly, check the air circulation system to ensure the adjustment damper is functioning properly. If the temperature rises too quickly, adjust the PID settings. If the temperature rises too quickly and triggers the over-temperature protection, the controller may be faulty; in this case, replace the control panel or solid-state relay.
Fault: If the constant temperature and humidity test chamber fails to meet the low-temperature test requirements, investigate whether the temperature drops very slowly or if it stabilizes at a certain point before rising again. If the temperature drops very slowly, check if the chamber was dried before the low-temperature test to maintain dryness. Ensure the samples are not placed too densely to prevent inadequate air circulation. After ruling out these issues, consider whether the refrigeration system is malfunctioning; in such cases, seek professional repair from the manufacturer.
Fault: If the constant temperature and humidity test chamber malfunctions during operation, with the control panel displaying a fault message and an audio alarm, the operator can refer to the troubleshooting section of the equipment's user manual to identify the type of fault. Professional maintenance personnel should then perform the necessary repairs to ensure the test proceeds smoothly. Other environmental experimental equipment will have other conditions in use, which need to be dealt with according to the current situation.
Una razón 1. Debido a que la temperatura de la cámara de prueba de temperatura y humedad constantes no se puede mantener, observe si el compresor de refrigeración puede arrancar cuando la cámara de prueba está en funcionamiento y si el compresor puede arrancar cuando el equipo de prueba ambiental está en funcionamiento, lo que indica que el circuito de la fuente de alimentación principal a cada compresor es normal y que el sistema eléctrico no tiene problemas.2. No hay fallas en el sistema eléctrico. Continúe revisando el sistema de refrigeración. Primero, verifique si la presión de escape y succión del compresor de baja temperatura (R23) de los dos conjuntos de unidades de refrigeración es inferior al valor normal, y si la presión de succión está en estado de vacío, lo que indica que la dosis de refrigeración de la unidad de refrigeración principal es insuficiente.3. Toque el tubo de escape y el tubo de succión del compresor R23 con la mano y compruebe que la temperatura del tubo de escape no es alta y la temperatura del tubo de succión no es baja (sin escarcha), lo que también indica que el refrigerante R23 en el host es insuficiente.Otra razón: 1. No se ha determinado la causa de la falla, y se confirma mediante el control de la cámara de prueba de temperatura y humedad constantes. La cámara de prueba cuenta con dos conjuntos de unidades de refrigeración.Una es la unidad principal y la otra, la unidad auxiliar. Cuando la velocidad de enfriamiento es alta, ambas unidades funcionan simultáneamente al inicio de la fase de mantenimiento de temperatura. Una vez que la temperatura se estabiliza, la unidad auxiliar se detiene y la unidad principal mantiene la temperatura. Si se produce una fuga de refrigerante R23 de la unidad principal, su eficiencia de enfriamiento se reducirá significativamente. Durante el proceso de enfriamiento, ambas unidades funcionan simultáneamente, lo que garantiza temperaturas estables y una disminución gradual de la velocidad de enfriamiento. Durante la fase de aislamiento, si la unidad auxiliar se detiene, la unidad principal pierde su función de enfriamiento, lo que provoca un ascenso lento del aire dentro de la cámara de prueba. Cuando la temperatura alcanza un nivel determinado, el sistema de control activa la unidad auxiliar para que se enfríe, tras lo cual se detiene de nuevo. La causa del fallo de producción se identificó como una fuga de refrigerante de baja temperatura (R23) de la unidad principal. Al revisar el sistema de refrigeración en busca de fugas, se encontró una grieta de aproximadamente 1 cm de longitud en el vástago de la válvula solenoide de derivación de gas caliente. Tras reemplazar la válvula solenoide y recargar el sistema con refrigerante, el sistema volvió a funcionar con normalidad. Este análisis muestra que el diagnóstico de fallas se realiza paso a paso, comenzando por los aspectos externos y avanzando hacia el interior, centrándose luego en la electricidad y, finalmente, en la refrigeración. Un conocimiento profundo de los principios y procesos operativos de la cámara de pruebas es esencial para un diagnóstico preciso de fallas.
Ocho puntos clave para elegir cámara de prueba de alta y baja temperatura:1. Independientemente de si se selecciona para una cámara de prueba de temperatura alta o baja u otro equipo de prueba, debe cumplir con las condiciones de temperatura especificadas en los requisitos de prueba;2. Para garantizar la uniformidad de la temperatura en la cámara de prueba, se puede seleccionar el modo de circulación de aire forzado o no forzado según la disipación de calor de las muestras;3. El sistema de calentamiento o enfriamiento de la cámara de prueba de alta y baja temperatura no debe tener efecto sobre las muestras;4. La cámara de prueba debe ser conveniente para que el estante de muestras correspondiente coloque las muestras, y el estante de muestras no cambiará sus propiedades mecánicas debido a cambios de temperatura altos y bajos;5. La cámara de prueba de alta y baja temperatura debe contar con medidas de protección. Por ejemplo, con ventana de observación e iluminación, desconexión de la alimentación, protección contra sobretemperatura y diversos dispositivos de alarma.6. Si existe función de monitoreo remoto según los requerimientos del cliente;7. La cámara de prueba debe estar equipada con contador automático, luz indicadora y equipo de registro, apagado automático y otros dispositivos instrumentales al realizar la prueba cíclica, y debe tener buenas funciones de registro y visualización;8. Según la temperatura de la muestra, existen dos métodos de medición: sensor de viento superior e inferior. La posición y el modo de control del sensor de temperatura y humedad en la cámara de prueba de alta y baja temperatura se pueden seleccionar según los requisitos de prueba del producto del cliente para seleccionar el equipo adecuado.
